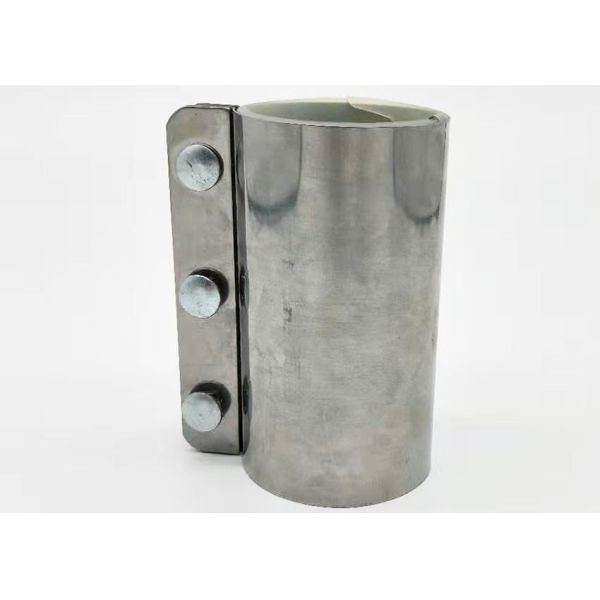

Stainless Steel Compression Coupling With Silicone Lining Use To Pneumatic Conveying System
description:
the pipe clamps connector pipe saver pipe repair clamp the internal sleeve are white silicone.The exterior is made of stainless steel.
This series is good at repaining pin holes and breaks caused by aging or rusting,which can seal under pressure and no need of changing of pipes,they have advantages of safe,convenient and efficiency,can be installed without any other tools.It is highly optimized for general use and has few requirements on the ellipticity of pipe arc.
The inner gasket makes the seal between the two pipe segments, with interlocking finger structure which make the coupling air/fine product leakage during the conveying; material could be black rubber (or white silicon). Inside of the pipe coupling, a conductivity strip which transfer the electrostatic charge generated due to conveying. There’s a conductivity protective ring available preventing easy wear of the gasket.
Feature:
Pipe and tube sizes 38 mm to 114 mm
Standard construction:Stainless steel
Gasket materials: black EPDM, white silicone
Static conductive grounding strip is standard
Easy to install and easy to use
Special pipe sizes we can be customized
Compression Couplings | size(mm) | pipe clamp | silicone | bolts quantity | nut quantity |
| ø38*100 | stainless steel or customer's require | silicone | 2 | 2 |
| ø51*100 | stainless steel or customer's require | silicone | 3 | 3 |
| ø38*130 | stainless steel or customer's require | silicone | 3 | 3 |
| ø51*130 | stainless steel or customer's require | silicone | 3 | 3 |
| ø63*130 | stainless steel or customer's require | silicone | 3 | 3 |
| ø76*150 | stainless steel or customer's require | silicone | 3 | 3 |
| ø89*150 | stainless steel or customer's require | silicone | 3 | 3 |
| ø102*150 | stainless steel or customer's require | silicone | 3 | 3 |
